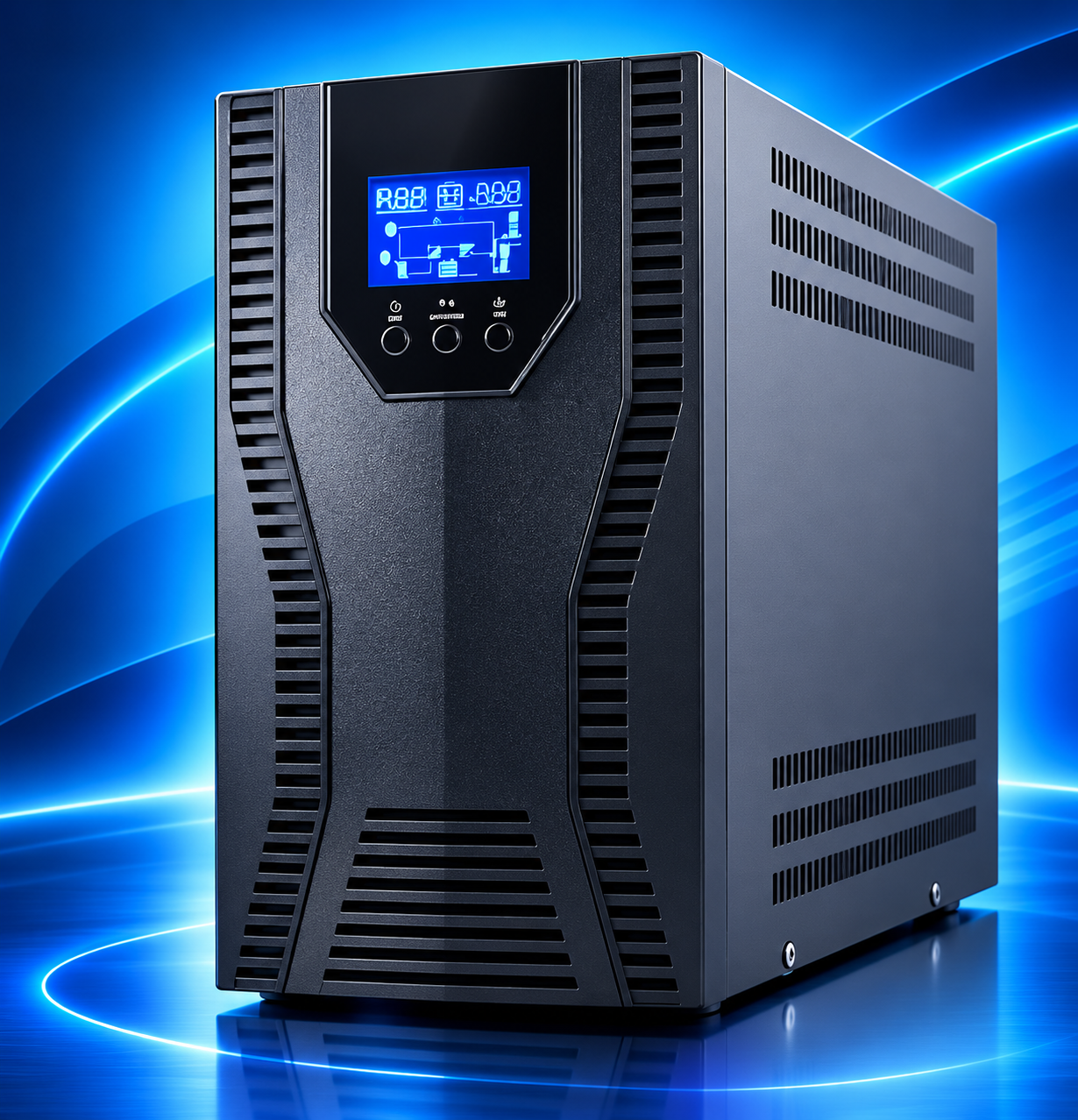

Techfine CG 2KVA Single Phase Online UPS

(0 Reviews) Write a review

18,000.00৳

In stock
Buy now

Techfine CG1K – 2000VA / 1600W Online UPS

  • Brand: Techfine
  • Model: CG2K
  • Capacity: 2000VA / 1600W
  • Technology: Online UPS
  • Phase: Single Phase
  • Output: Pure Sine Wave
  • Power Factor: ≥0.97
  • Transfer Time: 0ms (AC to Battery)
  • Battery Type: 12V / 7Ah / 9Ah
  • Battery Quantity: 4 / 6
  • Display: Smart LCD Display
  • Protection: Overload, Short Circuit & Surge Protection
  • Communication: Smart RS232 Interface
  • Origin: China
  • Warranty: 1 Year (Physical & Burn Damage Not Covered)

Description

The Techfine CG2K 2000VA / 1600W Online UPS is designed to provide stable, reliable, and uninterrupted power protection for computers, office equipment, and other sensitive electronic devices.

Featuring advanced Online UPS technology and Pure Sine Wave output, the CG2K ensures consistent power delivery and helps protect connected equipment from voltage fluctuations and power disturbances.

With 0ms AC-to-battery transfer time, a smart LCD display, and a high power factor of ≥0.97, this UPS is suitable for professional office environments, business applications, and critical power backup requirements.

Key Features:

  • 2000VA / 1600W Power Capacity
  • Pure Sine Wave Output
  • Advanced Online UPS Technology
  • 0ms AC-to-Battery Transfer Time
  • Smart LCD Display
  • Power Factor ≥0.97
  • Overload & Short Circuit Protection
  • Lightning, Noise & Surge Protection
  • Smart RS232 Communication Interface

Product Information:

  • Brand: Techfine
  • Model: CG2K
  • Phase: Single Phase
  • Origin: China
  • Warranty: 1 Year (Physical and Burn Damage Not Covered)

Specifications

  • BrandTechfine
  • ModelCG2K
  • Capacity2000VA/1600W
  • PhaseSingle Phase
  • OriginChina
  • Input
  • Voltage Range110-300VAC in 50% load; 160-300VAC in 100% load
  • Input Return Voltage110-300V
  • Frequency Range40Hz - 70Hz
  • Power Factor100% load ≥ 0.97
  • Output
  • Output Voltage220VAC ± 1% (208/210/230 the panel is adjustable)
  • Voltage range (Batt. Mode)±1%
  • Frequency Range (Sync Calibration Range)47Hz - 53Hz or 57Hz - 63Hz
  • Frequency Range (Batt. Mode)50 Hz (60Hz optional) ± 0.25 Hz
  • Surge Ratio3: 1
  • Harmonic Distortion≤3% THD (linear load)
  • Transfer Time (AC to DC)0ms
  • Transfer Time (inverter to bypass)4 ms (standard)
  • WaveformPure sine wave
  • Battery
  • Standard Model Battery Type12V 7AH/9AH
  • Standard Model Battery Quantity4/6
  • Standard Model Charging Current1.0A (Max)
  • Standard Model Charging Voltage82.1VDC ± 1%
  • Protection againstFull time lightning protection, noise and surge protection; Output short circuit protection and overload protection
  • Appearance
  • LCD DisplayUsing LCD display, the status parameters at a glance
  • Alarm
  • Battery ModeAlarm beeps every four seconds
  • Low BatteryAlarm beeps every second
  • OverloadAlarm beeps every second
  • FaultAlarm beeps continuously
  • InterfaceSmart RS232 interface (USB interface to communicate with engineer)
  • Environment
  • Temperature And HumidityHumidity 20-90%, temperature 0-40°C (non-condensing)
  • Noise (dB)< 50dBA at one meter distance
  • Control ManagementSmart RS-232: Support Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix
  • Optional SNMPPower Management supports SNMP management and network management
  • External Dimension
  • Standard Model Dimension (mm)450*192*335
  • Standard Model Weight (KGS)N.W: 23.7
  • CertificationISO9001 / ISO14001 / CE Certification
